SERENYS Series features a complete solution of mammographs fully optimized for breast imaging and aimed at improving the detection and diagnosis of cancer.

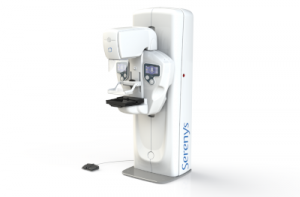

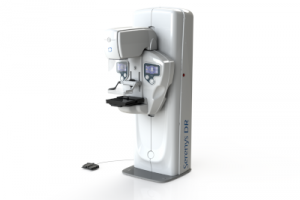

SERENYS DR, complete system for 2D image acquisition fully upgradable to 3D
SERENYS DR is a full-field digital mammography solution for screening and diagnostic examinations supporting the prevention of breast cancer. Designed to ensure patient and operator comfort, it is implementable with a wide range of accessories including the device for stereotactic and tomoguided biopsies.
Also available in a version not upgradable for biopsy exams: SERENYS DR C.

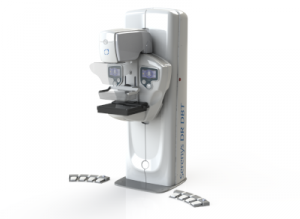

SERENYS DR DBT, advanced Digital Breast Tomosynthesis system
SERENYS DR DBT is used for two-dimensional diagnostic or screening and three dimensional tomosynthesis examinations. It generates images of excellent quality, offering a clear view of lesions with a low level of dose as compared to conventional mammography. It is easily upgradable with cutting edge biopsy techniques in tomosynthesis and contrast mammography.

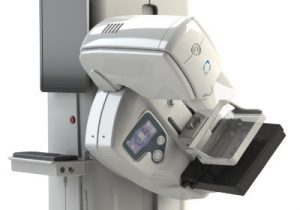

SHORT ISOCENTRIC C-ARM
The motorized isocentric C-Arm (rotation and vertical movement) allows all breast projections without moving the patient and without adjusting the height of the C-Arm, making exams faster and more comfortable for the patient.
Optimal patient comfort
Serenys Series was designed to make the exam environment as comfortable as possible. The smart compression system "µpress" features a smooth and adapted paddle design that compresses the breast progressively once in contact, making compression as comfortable as possible for the patient. The AEC device (Automatic Exposure Control) for am optimized monitoring of the x-ray dose delivered to the patient.

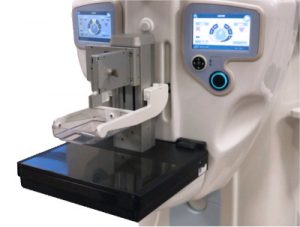

STEREOTACTIC BIOPSY DEVICE
The state-of-art biopsy device included (optionally) on SERENYS Series uses microprocessor control combining simplicity and precision to locate the 3D position of lesions and position the biopsy needle to reac

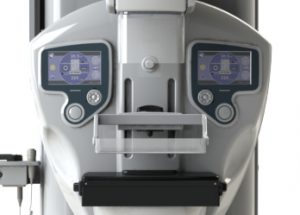

TOUCHSCREEN CONTROL PANEL
Two colour displays placed on both sides of C-Arm, show information regarding compression force, compressed breast thickness, collimation format, magnification factor, projection angle and patient name. Through a touchscreen the operator can select breast laterality and ACR codes.

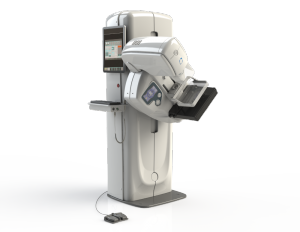

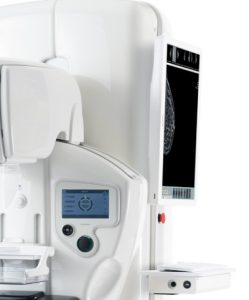

INTEGRATED ACQUISITION WORKSTATION
Simplify and optimize the workflow using intuitive solutions that can be customized by the operator. Separated workstation available with a standalone anti-X half transparent screen.
SERENYS analog, accurate diagnosis at a much reduced operating cost
SERENYS is a fully operational, conveniently priced unit that radiologists use to acquire high quality images while achieving an optimal workflow. It is suitable for all breast exams including high volume mammography screening programs which are always performed with the most accuracy.
This product is a Class IIb medical device manufactured by Metaltronica. The conformity assessment has been carried out by IMQ, n°0051 and bears the CE mark. It is intended for use in mammography. Please read the instructions for use carefully. Photos are non-contractual.
