DMS Imaging

DR SYSTEMS | RETROFIT KIT

IRAY DIGITAL DETECTORS

DR UPGRADE SOLUTIONS

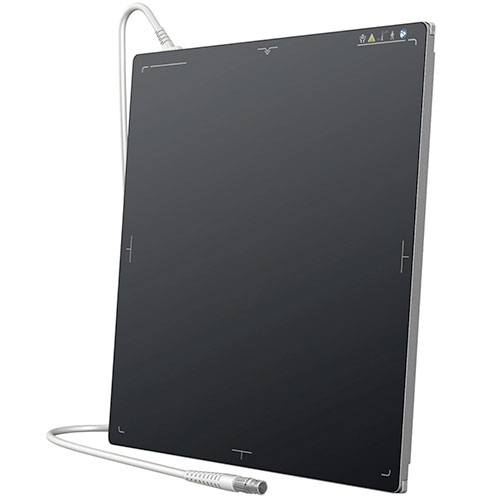

Wired detector VENU 1717 X

Digital RAD detector, 43x43 cm / 17x17’’

Wired but cassette-size

Detector type: a-Si with CsI scintillator

High resolution : 139 µm

High DQE : 69 % @ 0 pl/mm

Weight : 4 kg

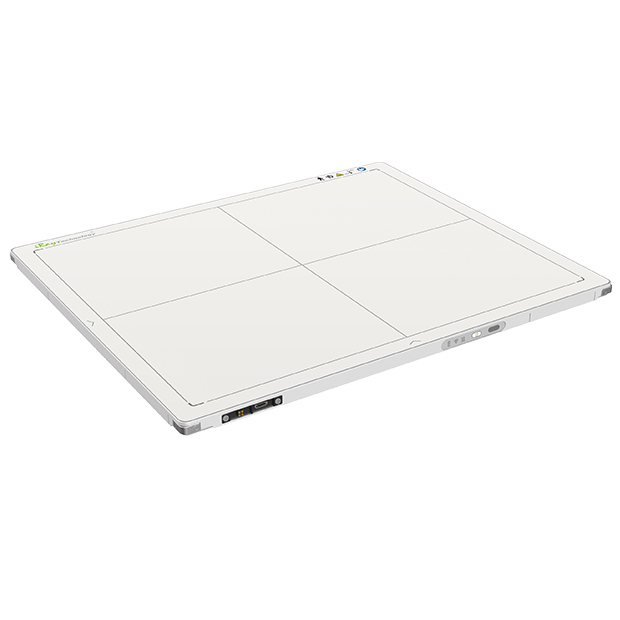

Portable wifi detectors MARS 1417 V3 & MARS 1717 V3

Digital wifi detector 35x43 cm / 14x17’’ or 43x43 cm / 17x17’’

Detector type a-Si with CsI scintillator

Pixel pitch: 150 µm for 1417 and 139 µm for 1717

Weight : 3.3 kg and 4.6 kg

Local load : 100 kg and 135 kg

Uniform load : 150 kg

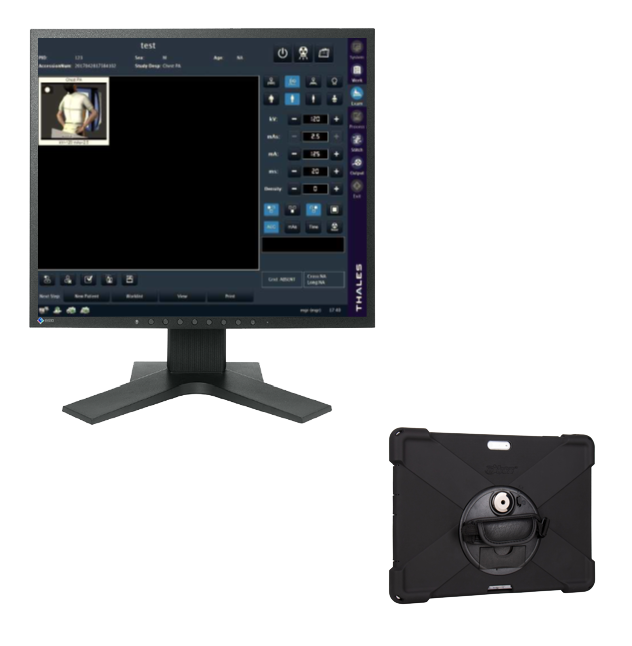

DROC SOFTWARE

iRay detectors are managed by DR software : DROC

Intuitive and easy-to-use

DICOM MWL, MPPS, Print, Store, RDSR

Stitching module included

Available on fixed computer or tablet or portable computer

Related

MARS series are a Class IIa medical devices, manufactured by IRAY. The conformity assessment was carried out by TUV Rheinland CE0197 and bears the CE marking. It is intended for digital image acquisition. Read the operating instructions carefully. Photos are non-contractual.
